How do I set up drilling & numbering for NCR products?

NCR pads, sets and books

Drilling & Numbering Guidelines for NCR Products

If you choose to include drill holes and numbering on your NCR print, follow these guidelines to ensure your design is compatible with the drilling process.

Drill Hole Requirements

  • 20mm safe zone is required on the side where the drill holes will be placed.
  • Keep all text, graphics, and background elements clear of this safe zone to avoid interference with the drill holes.

Numbering Requirements

  • A simple guide showing where you would like the numbering to be printed
  • Standard font for numbering is 20pt Courier New in black ink

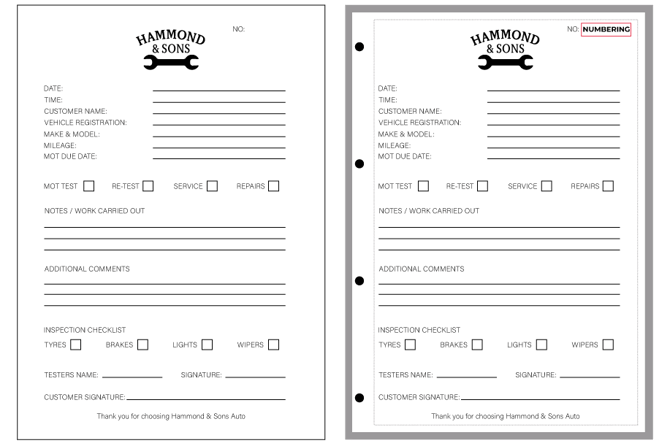

Submitting Your Artwork For Single Sided NCR

When supplying your print files, please provide two files:

  1. Artwork with the template overlaid – This ensures your design aligns correctly with the drill hole placement.
  2. Artwork only – A clean version of your design without the template overlay, ready for printing.

NUMBERING DRILLING SINGLE

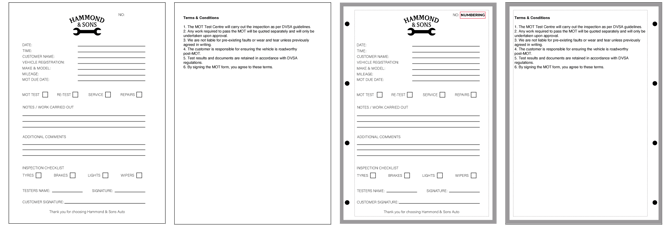

Submitting Your Artwork For Double Sided NCR

When supplying your print files, please provide four files:

  1. Artwork only for the front page.
  2. Artwork only for the back page.
  3. Artwork with the template overlaid for the front - Showing the drill hole overlay and numbering position.
  4. Artwork with the template overlaid for the back - Showing the drill hole overlay.

NUMBERING DRILLING DOUBLE
